• Rear axle, 3.73 ratio
• Pickup box, Wideside
• Air cleaner, high-capacity
• Transfer case, electronic shift with rotary dial controls (Requires 4WD models)
• Differential, heavy-duty automatic locking rear
• Four wheel drive
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Alternator, 125 amps
• Trailer brake controller, integrated
• Frame, hydroformed front section
• GVWR, 9200 lbs. (4173 kg)
• Suspension, front independent, torsion bar
• Suspension, rear 2-stage multi-leaf springs semi-elliptic
• Steering, power, recirculating ball
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust aluminized stainless-steel muffler and tailpipe

• Wheels, 4-17" x 7.5" (43.2 cm x 19.1 cm) 8-lug bright machined aluminum includes 16" (40.6 cm) steel spare wheel (spare wheel will not cosmetically match the other 4 wheels) Spare not included with (ZW9) pickup box delete unless a spare tire is ordered
• Tires, LT265/70R17E all-terrain, blackwall (Requires (N89) 17" x 7.5" (43.2 cm x 19.1 cm) 8-lug bright machined aluminum wheels. Includes 4 tires and (ZER) LT265/75R16 on-/off-road blackwall spare tire with (E63) Wideside pickup box. Includes 4 tires with (ZW9) pickup box delete.)
• Tire, spare LT265/75R16E on-/off-road, blackwall includes 16" (40.6 cm) steel spare wheel and spare tire carrier (Requires (N89) 17" x 7.5" (43.2 cm x 19.1 cm) 8-lug bright machined aluminum wheels and (ZW9) pickup box delete)
• Tire carrier, outside spare, winch-type mounted under frame at rear (Orders with (ZW9) Pickup box delete will not include a Spare Tire Carrier unless a spare tire is ordered.)
• Spare tire lock keyed cylinder lock that utilizes same key as ignition and door (Not available with (ZW9) pickup box delete or (VF7) rear bumper delete. Deleted when SEO (5Z4) spare wheel and carrier delete is ordered.)
• Recovery hooks, front, frame-mounted
• Bumper, front chrome (Includes body-color bumper top caps.)
• Bumper, rear chrome, step-style with pad (Requires RPO (E63) wideside pickup box)
• Moldings, bodyside, body-colored (Moldings are deleted if any SEO paint is ordered)
• Grille, chrome surround
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Lamps, dual cargo area lamps
• Fog lamps, front, halogen
• Mirrors, outside heated power-adjustable, power-folding and driver-side auto-dimming with integrated turn signal indicators (Mirrors are body-colored and include curb-tilt feature. Upgradeable to (DPN) outside vertical camper mirrors.)
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver-and front passenger-side glass) (With Regular Cab models, includes rear window. With Extended Cab models, includes rear and rear quarter windows. With Crew Cab models or (C49) rear-window defogger, includes light-tinted rear window. Included with (PCM) Work Truck Preferred Package.)
• Wipers, front intermittent wet-arm with pulse washers
• Tailgate protection top of tailgate protection cap

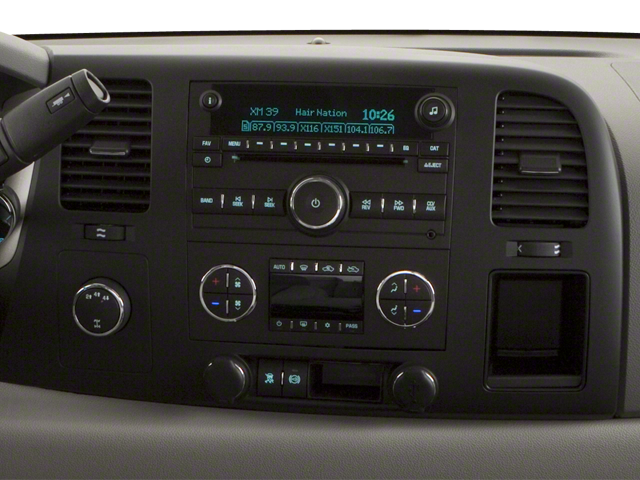

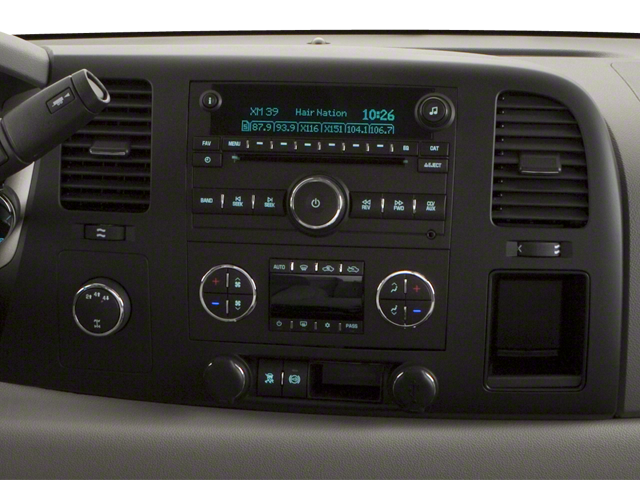

• Audio system, AM/FM stereo with CD player and MP3 playback seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed compensated volume, TheftLock, auxiliary input jack, and USB port
• XM Radio is standard on more than 50 2010 GM models, including three trial months of service. XM turns your world on with commercial-free music channels for virtually every music genre, all in amazing digital quality sound. Turn on your favorite sports, the biggest names in News, Talk and Comedy, family programming, exclusive concerts and original music series, wherever you go from coast to coast. Everything worth listening to is now on XM (XM service available only in the 48 contiguous United States and the District of Columbia. XM Radio subscription required and sold separately after trial period. Fees, taxes, and a one-time re-activation fee, may apply. Subscriptions governed by XM Customer Agreement available at xmradio.com. All fees and programming subject to change. Family programming Packages are available. Not available with (UUL) AM/FM stereo with MP3 compatible CD player and navigation, (UUK) AM/FM stereo with MP3 compatible CD/DVD player and navigation or (UE0) OnStar, delete.)
• Audio system feature, Bose premium speaker system with subwoofer in center console
• Audio system feature, USB port
• Bluetooth® for phone, personal cell phone connectivity to vehicle audio system

• Seats, front bucket includes 10-way power driver and front passenger seat adjusters, including 2-way power lumbar control, heated seat cushions and seatbacks, 2-position driver memory, adjustable outboard head restraints, floor console and storage pockets
• Seat trim, Leather-appointed front seats
• Seat adjuster, driver 10-way power
• Seat adjuster, front passenger 10-way power

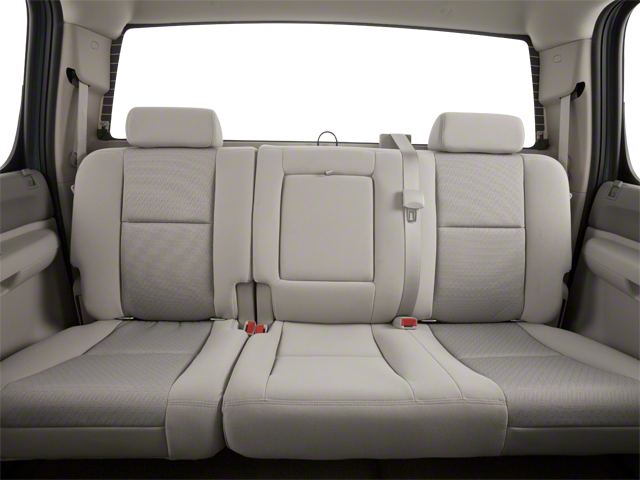

• Seat, rear 60/40 folding bench (folds up), 3-passenger, folding (includes child seat top tether anchor)

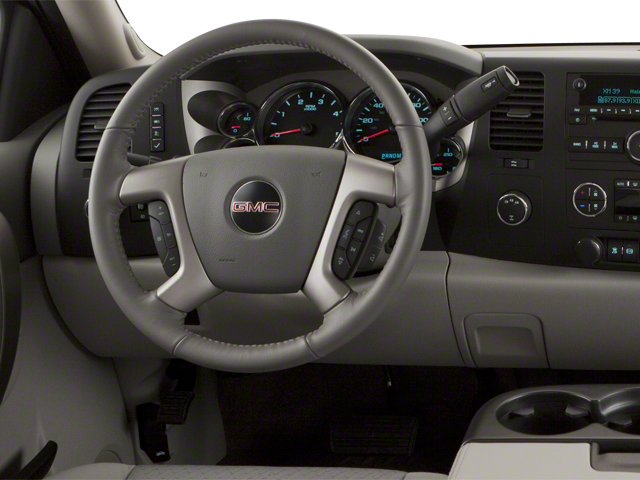

• Steering wheel, leather-wrapped with theft-deterrent locking feature
• Steering wheel controls mounted audio controls
• Console, floor with storage compartment, 2 auxiliary power outlets and dual cup holders
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Extended and Crew Cab models also include rear floor mats)
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on

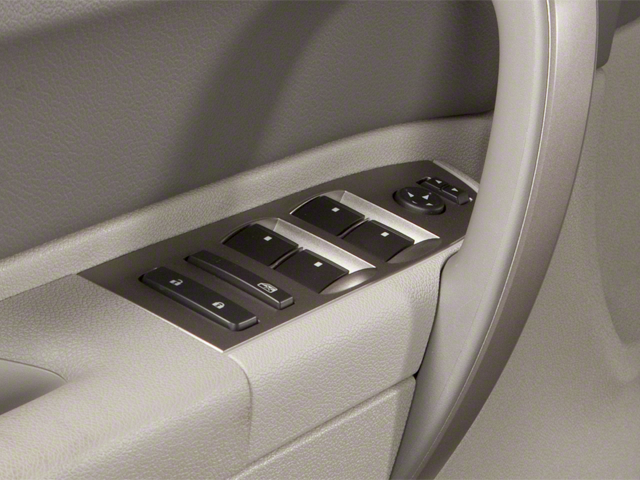

• Windows, power with driver Express-Down (Includes front passenger Express-down)
• Door locks, power includes Remote Keyless Entry
• Cruise control, electronic with set and resume speed, located on steering wheel
• Remote vehicle starter system includes Remote Keyless Entry (Remote Keyless Entry does not lock/unlock tailgate when (PDD) SLT Convenience Package is ordered.)
• Air conditioning, dual-zone automatic climate control with individual climate settings for driver and right-front passenger
• Defogger, rear-window electric (Not available with (A48) power sliding rear window.)
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models)
• Power outlets 2 auxiliary instrument panel-mounted with covers, 12-volt
• Mirror, inside rearview auto-dimming ((DD8) inside rearview auto-dimming mirror will be replaced with (DRC) inside rearview mirror with camera display when ordered with (UVC) rearview camera system and (UUI), (UUN) or (UUJ) radios.)
• Headliner, Opal Gray-colored cloth with matching retainer moldings
• Visors, driver and front passenger, sliding with clip and illuminated vanity mirror on driver and passenger-side, Opal Gray-colored
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab models)
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Coat hooks, rear driver and passenger side

• StabiliTrak, stability control system with Proactive Roll Avoidance (Requires T*20753 or T*20743 Models.)
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, frontal, driver and right-front passenger (Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owners Manual and child safety seat instructions for more safety information)
• OnStar, 1-year of Safe and Sound plan. Includes Automatic Crash Response, Emergency Services, Crisis Assist, Stolen Vehicle Assistance, Remote Ignition Block, Remote Door Unlock (requires power locks), Roadside Assistance, Remote Horn and Lights, Hands Free Calling, OnStar Vehicle Diagnostics, and Low Mileage Discount (OnStar services require vehicle electrical system (including battery), wireless service and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. Vehicle Diagnostics capabilities vary by model. Remote door unlock success varies with conditions. Ability to locate stolen vehicles varies with conditions. Subscription Service Agreement required. Call 1-888-4ONSTAR (1-888-466-7827) or visit onstar.com for OnStar's Terms and Conditions, Privacy Policy and details and system limitations. Not available with a ship-to of Puerto Rico or the Virgin Islands. For a list of vehicles with Automatic Crash Notification visit onstar.com. Remote Door Unlock requires (AU3) power door locks.)
• Tire Pressure Monitoring System (does not apply to spare tire)

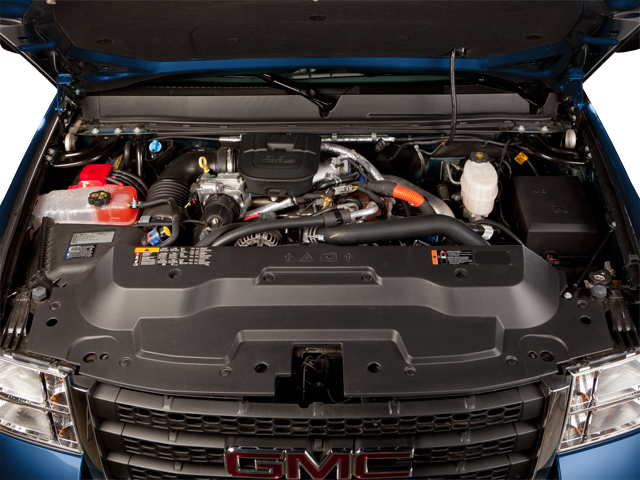

ENGINE, DURAMAX 6.6L TURBO DIESEL V8

• B5-Diesel compatible (365 hp [271.7 kW] @ 3200 rpm
• 660 lb-ft of torque [894.6 N-m] @ 1600 rpm)

SLT CONVENIENCE PACKAGE

• includes (JF4) adjustable power pedals
• (UG1) universal home remote
• (A60) locking tailgate
• (PPA) EZ-Lift tailgate and (UD7) Rear Parking Assist and (S41) Rear wheelhouse liner
• LPO

MIRRORS, OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL CAMPER MANUAL-FOLDING AND EXTENSION, BLACK

• includes integrated turn signal indicators consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated or power adjustable)

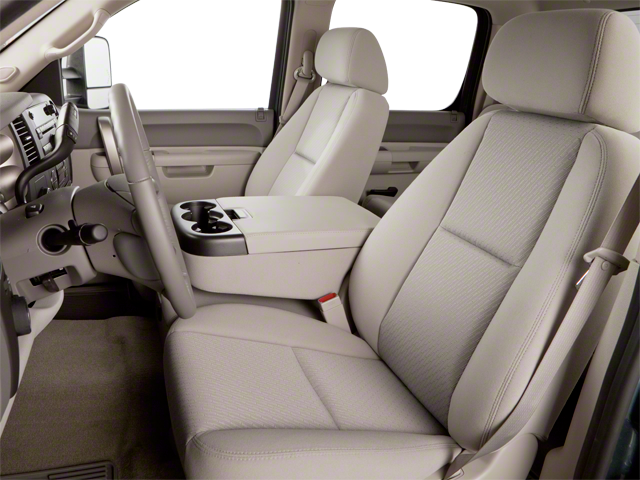

SEATS, FRONT BUCKET

• includes 10-way power driver and front passenger seat adjusters
• including 2-way power lumbar control
• heated seat cushions and seatbacks
• 2-position driver memory
• adjustable outboard head restraints
• floor console and storage pockets (STD)

SLT PREFERRED EQUIPMENT GROUP

• includes standard equipment

TRANSMISSION, ALLISON 1000 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive
• electronic engine grade braking and tow/haul mode

REAR PARKING ASSIST, ULTRASONIC

• with audible warning

AUDIO SYSTEM, AM/FM STEREO WITH CD PLAYER AND MP3 PLAYBACK

• seek-and-scan
• digital clock
• auto-tone control
• Radio Data System (RDS)
• speed compensated volume
• TheftLock
• auxiliary input jack
• and USB port (STD)

SKID PLATE PACKAGE, FRAME-MOUNTED SHIELDS

• includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case

SUSPENSION PACKAGE, OFF-ROAD

• includes 35mm deflective disk twin tube shock absorbers
• off-road jounce bumpers
• 36 front stabilizer bar
• (NZZ) skid plate package and Z71 decals on rear quarters

BATTERY, HEAVY-DUTY DUAL 730 COLD-CRANKING AMPS, MAINTENANCE-FREE

• with rundown protection and retained accessory power

• ENGINE DURAMAX 6.6L TURBO DIESEL V8 B5-Diesel compatible (365 hp [271.7 kW] @ 3200 rpm 660 lb-ft of torque [894.6 N-m] @ 1600 rpm)
• EBONY LEATHER-APPOINTED FRONT SEAT TRIM
• UNIVERSAL HOME REMOTE
• SLT CONVENIENCE PACKAGE includes (JF4) adjustable power pedals (UG1) universal home remote (A60) locking tailgate (PPA) EZ-Lift tailgate and (UD7) Rear Parking Assist and (S41) Rear wheelhouse liner LPO
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL CAMPER MANUAL-FOLDING AND EXTENSION BLACK includes integrated turn signal indicators consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated or power adjustable)
• ENGINE BLOCK HEATER
• SEATS FRONT BUCKET includes 10-way power driver and front passenger seat adjusters including 2-way power lumbar control heated seat cushions and seatbacks 2-position driver memory adjustable outboard head restraints floor console and storage pockets (STD)
• REAR AXLE 3.73 RATIO
• SLT PREFERRED EQUIPMENT GROUP includes standard equipment
• TRANSMISSION ALLISON 1000 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive electronic engine grade braking and tow/haul mode
• REAR PARKING ASSIST ULTRASONIC with audible warning
• CUSTOMER DIALOGUE NETWORK
• TAILGATE EZ-LIFT
• AUDIO SYSTEM AM/FM STEREO WITH CD PLAYER AND MP3 PLAYBACK seek-and-scan digital clock auto-tone control Radio Data System (RDS) speed compensated volume TheftLock auxiliary input jack and USB port (STD)
• PEDALS POWER-ADJUSTABLE FOR ACCELERATOR AND BRAKE
• LICENSE PLATE BRACKET FRONT
• PAINT SOLID
• TAILGATE LOCKING
• FIRE RED
• SKID PLATE PACKAGE FRAME-MOUNTED SHIELDS includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case
• SUSPENSION PACKAGE OFF-ROAD includes 35mm deflective disk twin tube shock absorbers off-road jounce bumpers 36 front stabilizer bar (NZZ) skid plate package and Z71 decals on rear quarters
• BATTERY HEAVY-DUTY DUAL 730 COLD-CRANKING AMPS MAINTENANCE-FREE with rundown protection and retained accessory power
• Tow Hitch
• Locking/Limited Slip Differential
• Four Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Aluminum Wheels
• Tires - Front All-Terrain
• Tires - Rear All-Terrain
• Conventional Spare Tire
• Tow Hooks
• Automatic Headlights
• Fog Lamps
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Power Folding Mirrors
• Privacy Glass
• Intermittent Wipers
• AM/FM Stereo
• CD Player
• MP3 Capability
• Auxiliary Audio Input
• Satellite Radio
• Telematics
• Requires Subscription
• Premium Sound System
• MP3 Capability
• Auxiliary Audio Input
• Bluetooth® Connection
• Power Driver Seat
• Power Passenger Seat
• Bucket Seats
• Heated Front Seat(s)
• Driver Adjustable Lumbar
• Passenger Adjustable Lumbar
• Leather Seats
• Power Driver Seat
• Power Passenger Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Leather Steering Wheel
• Steering Wheel Audio Controls
• Power Outlet
• Floor Mats
• Power Windows
• Keyless Entry
• Power Door Locks
• Cruise Control
• Keyless Entry
• Power Door Locks
• Remote Engine Start
• Climate Control
• Multi-Zone A/C
• A/C
• Rear Defrost
• Power Outlet
• Auto-Dimming Rearview Mirror
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Front Reading Lamps
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Telematics
• Requires Subscription
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Cold Cranking Amps @ 0° F (Primary): 600
• Cold Cranking Amps @ 0° F (2nd): 730
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): 25.4
• Total Cooling System Capacity (qts): 16.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Front (lbs): 4200
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 3462
• Curb Weight - Rear (lbs): 2498
• Gross Vehicle Weight Rating Cap (lbs): 9200
• Gross Combined Wt Rating (lbs): 22000
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9800
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1950
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1470
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 13900
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9800
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3475
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2450
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Full Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 6900
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.42
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.8
• Rear Brake Rotor Diam x Thickness (in): 13.5 x 0.79
• Tires
• Front Tire Order Code: QXT
• Rear Tire Order Code: QXT
• Spare Tire Order Code: ZER
• Front Tire Size: LT265/70R17E
• Rear Tire Size: LT265/70R17E
• Spare Tire Size: LT265/75R16E
• Front Tire Capacity (lbs): 2760
• Front Tire Capacity (lbs): 2470
• Rear Tire Capacity (lbs): 3043
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 16 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 24:1
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 51.2
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 153.0
• Length, Overall w/o rear bumper (in): 235.3
• Width, Max w/o mirrors (in): 80.0
• Height, Overall (in): 77.2
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 150.9
• Cab to Axle (in): 41.5
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 37.1
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.5
• Ground Clearance, Rear (in): 11.8
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.9
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 62.5
• Cargo Box Width @ Wheelhousings (in): 50.6
• Cargo Box (Area) Height (in): 21.0
• Tailgate Width (in): 61.6
• Cargo Volume (ft³): 60.7
• Ext'd Cab Cargo Volume (ft³): 60.7
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 41.3
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 62.5
• Second Head Room (in): 40.6
• Second Leg Room (in): 39.0
• Second Shoulder Room (in): 65.2
• Second Hip Room (in): 65.5
• Summary
• Vehicle Name: GMC Sierra 2500HD
• Body Style: Crew Cab 6.5' Fleetside
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
