• Wheels, 17" x 8" painted steel (Standard unless (NHT) Max Trailering Package is selected. Must order (PZX) 18" aluminum wheels with (NHT) Max Trailering Package.)
• Tires, P265/70R17 all-terrain, blackwall (Standard unless (NHT) Max Trailering Package is ordered.)
• Tire, spare P265/70R17 all-season, blackwall
• Wheel, full-size spare, 17" (43.2 cm) steel
• Tire carrier, lockable outside spare, winch-type mounted under frame at rear
• Fascia, front body-color
• Fascia, rear color-keyed
• Assist steps, Black
• Daytime Running Lamps, with automatic exterior lamp control
• Mirrors, outside heated power-adjustable, manual-folding and color keyed (With (9C1) Police Vehicle and (5W4) Special Service Vehicle includes body-color and driver spotter mirror.)
• Wipers, front intermittent, Rainsense
• Wiper, rear intermittent with washer
• Liftgate, rear manual

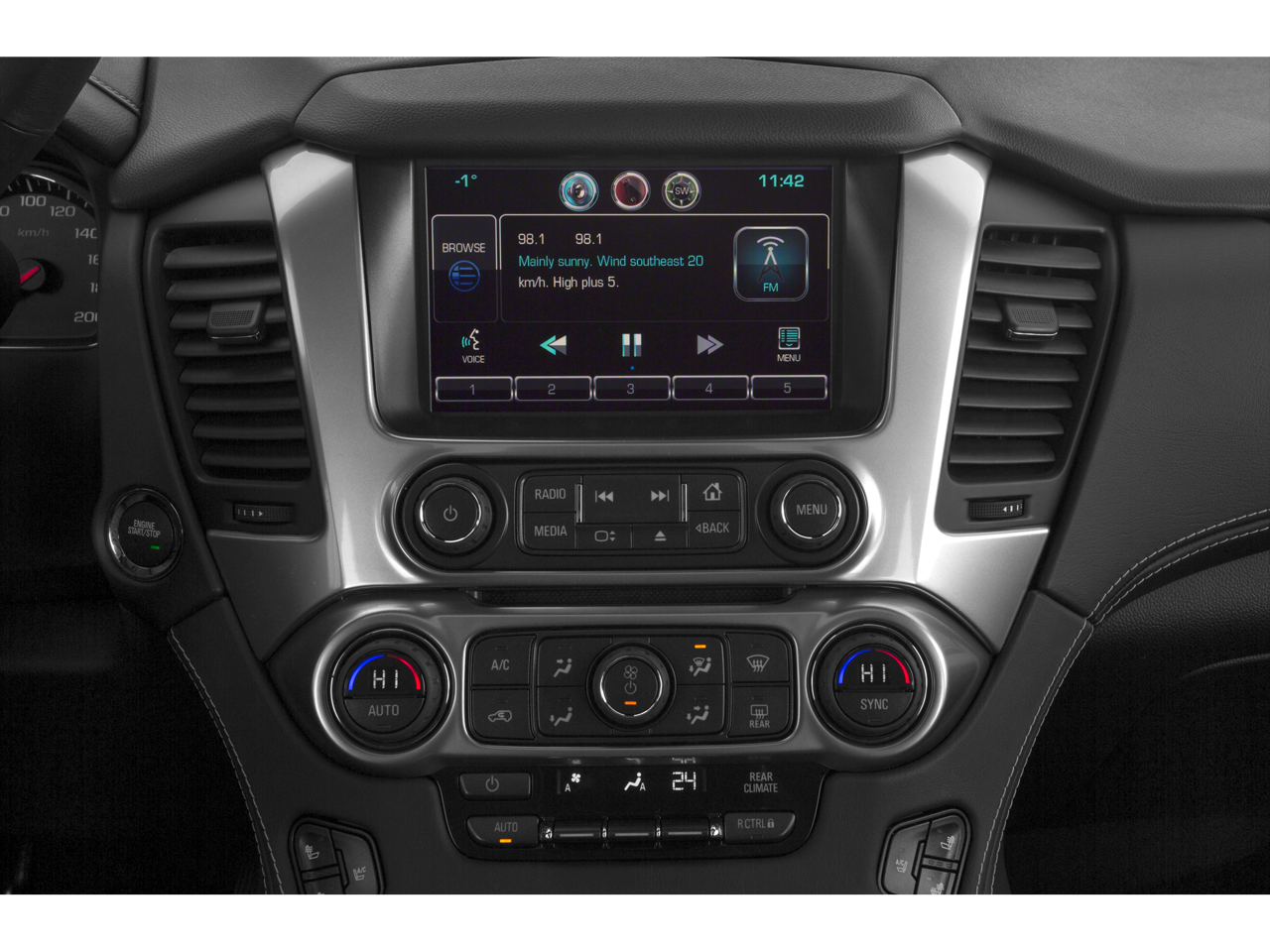

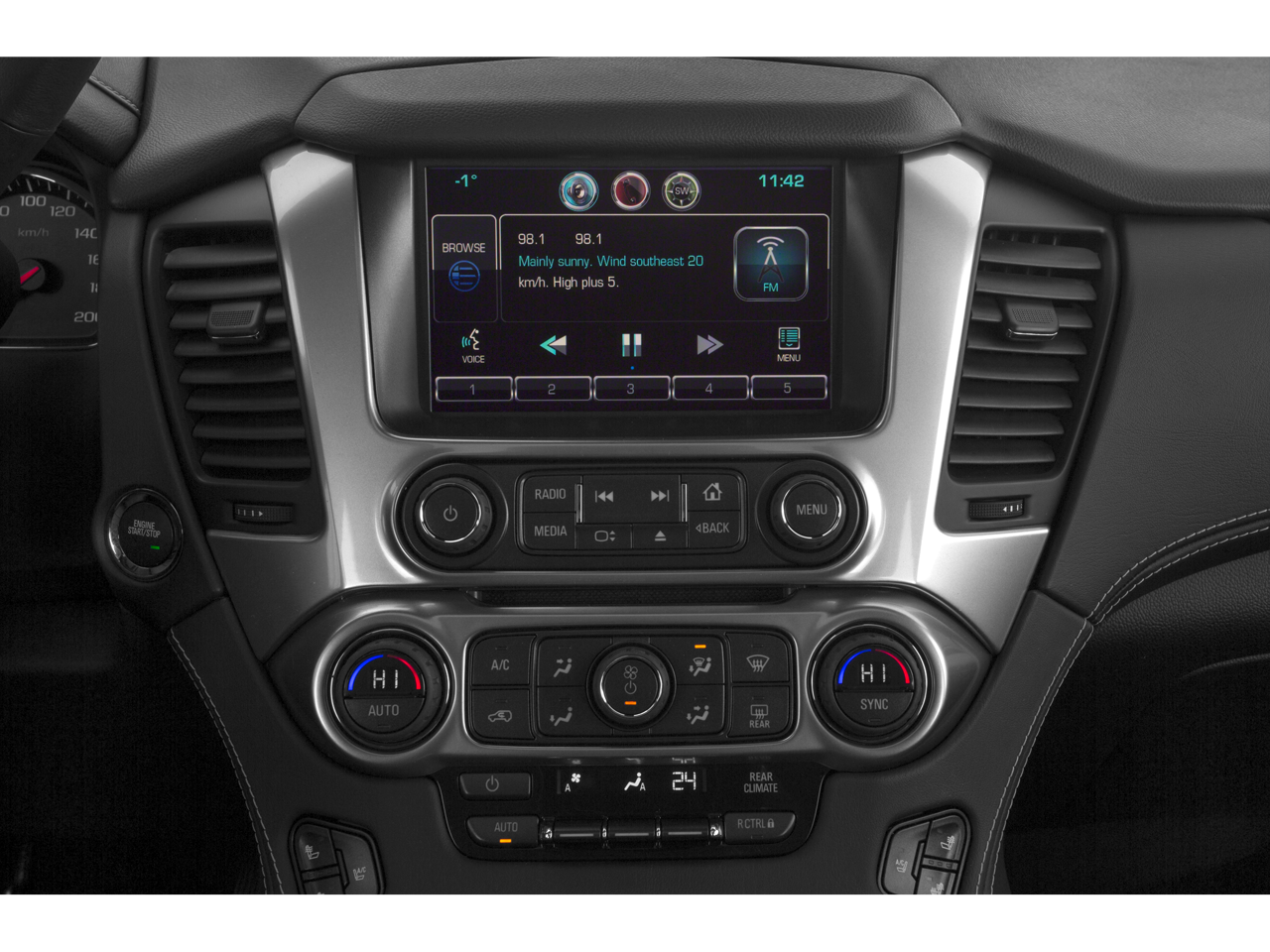

• Audio system, AM/FM stereo with CD player and auxiliary input jack includes 2 USB ports and 1 SD card reader
• Audio system feature, single-slot CD/MP3 player
• Audio system feature, 6-speaker system
• SiriusXM radio delete
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system (Deleted when (UE0) OnStar delete is ordered.)

• Seating, front 40/20/40 split-bench, 3-passenger includes 6-way power driver and 2-way front passenger seat adjuster, driver and front passenger power lumbar control and power reclining, center fold-down armrest with storage, storage compartments in seat cushion (includes auxiliary power outlet), adjustable outboard head restraints and storage pockets (With vinyl, does not include (AG1) Driver 6-way power seat adjuster or (AG2) Front passenger 6-way power adjuster.)
• OnStar with 4G LTE provides a built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds (Only on vehicles built after 10/5/14. Included and only available with (UE1) OnStar. Visit www.onstar.com for vehicle availability, details and system limitations. Services and connectivity may vary by model and conditions. 4G LTE service available in select markets. 4G LTE performance based on industry averages and vehicle systems design. Some services require data plan.)
• Seat trim, cloth

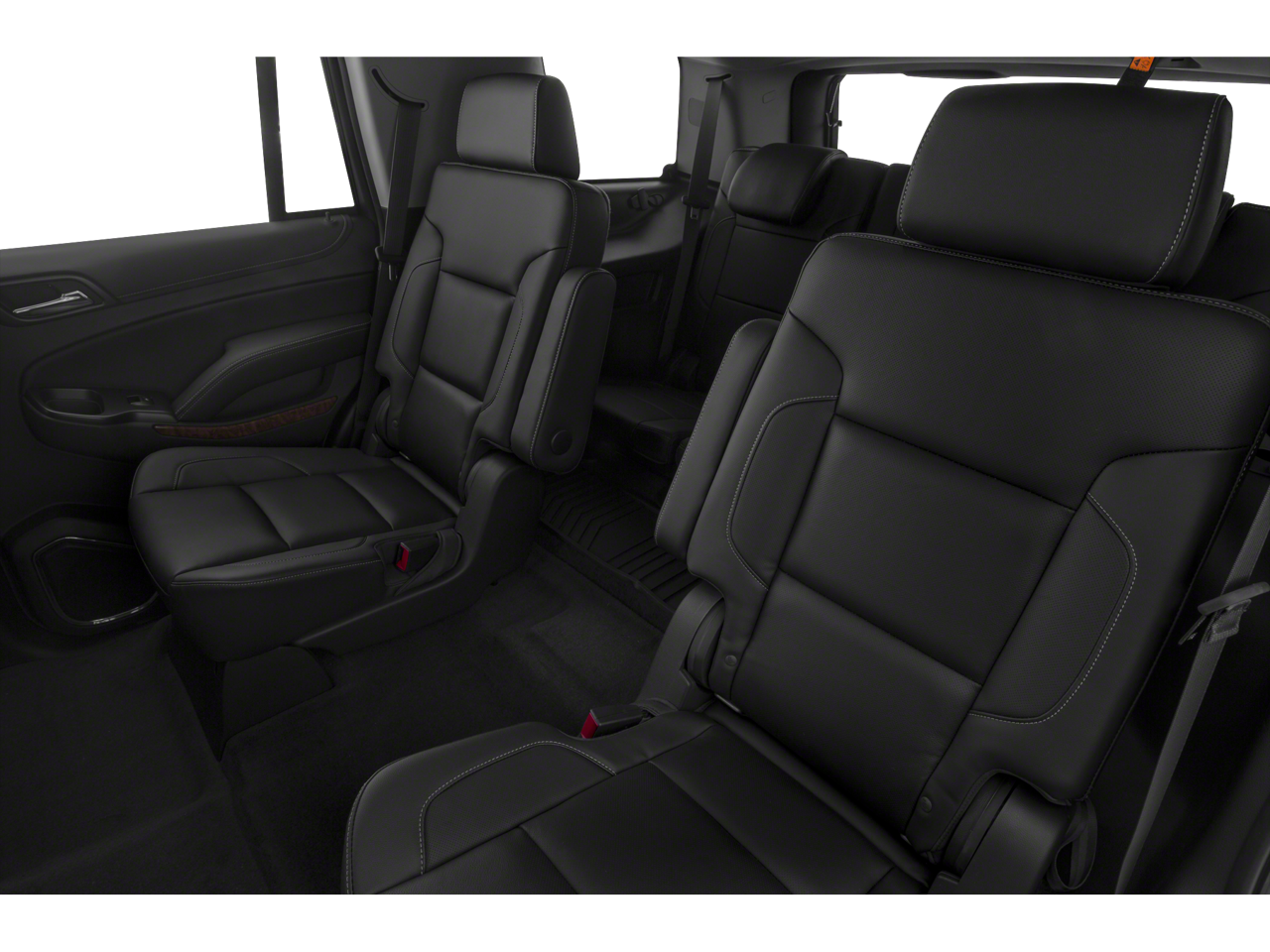

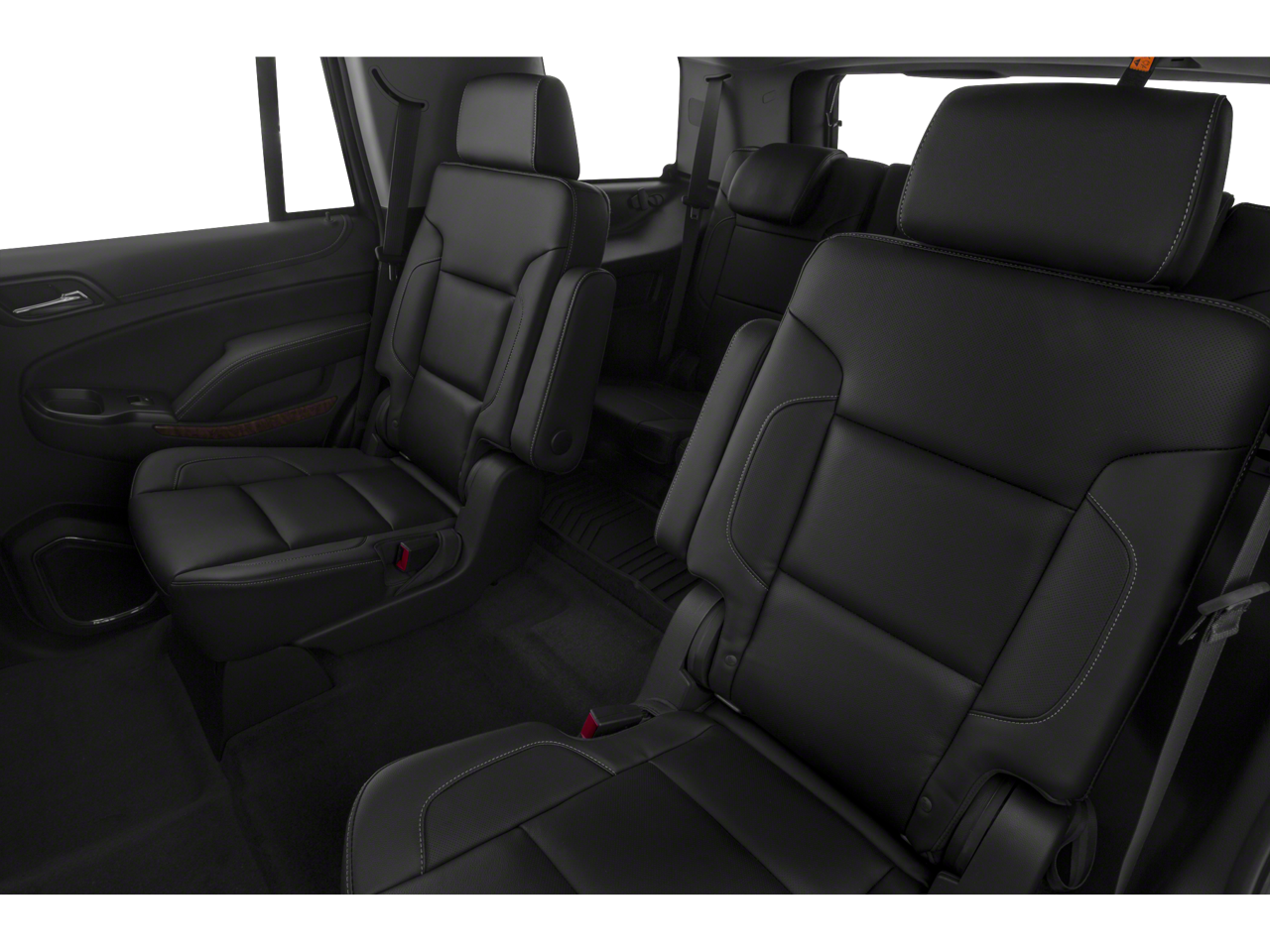

• Seats, second row 60/40 split-folding bench, manual
• Seat, third row manual 60/40 split-folding bench, fold flat
• Floor covering, Black rubberized-vinyl

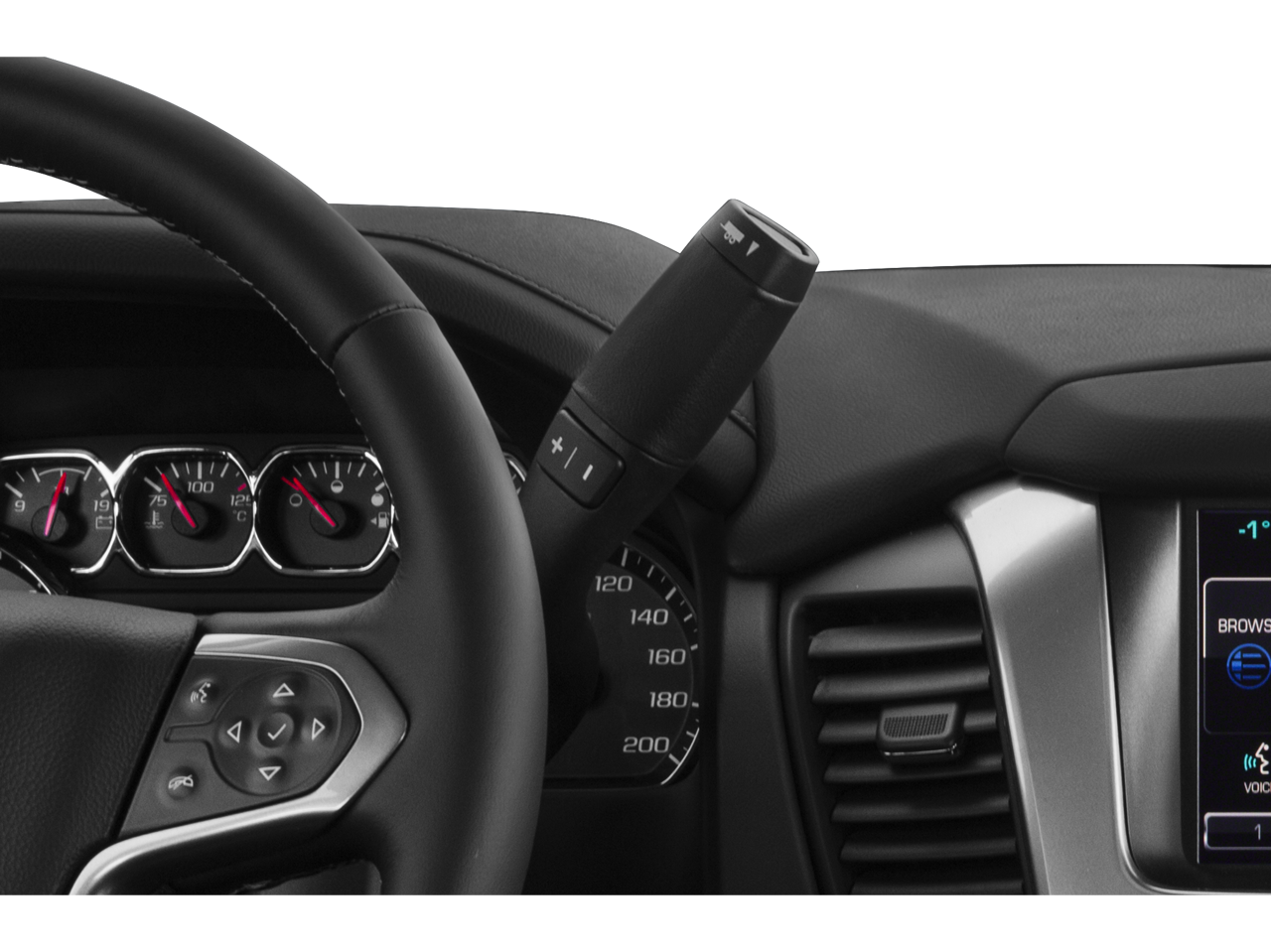

• Steering column, Tilt-Wheel
• Steering wheel, urethane
• Steering wheel controls, mounted cruise

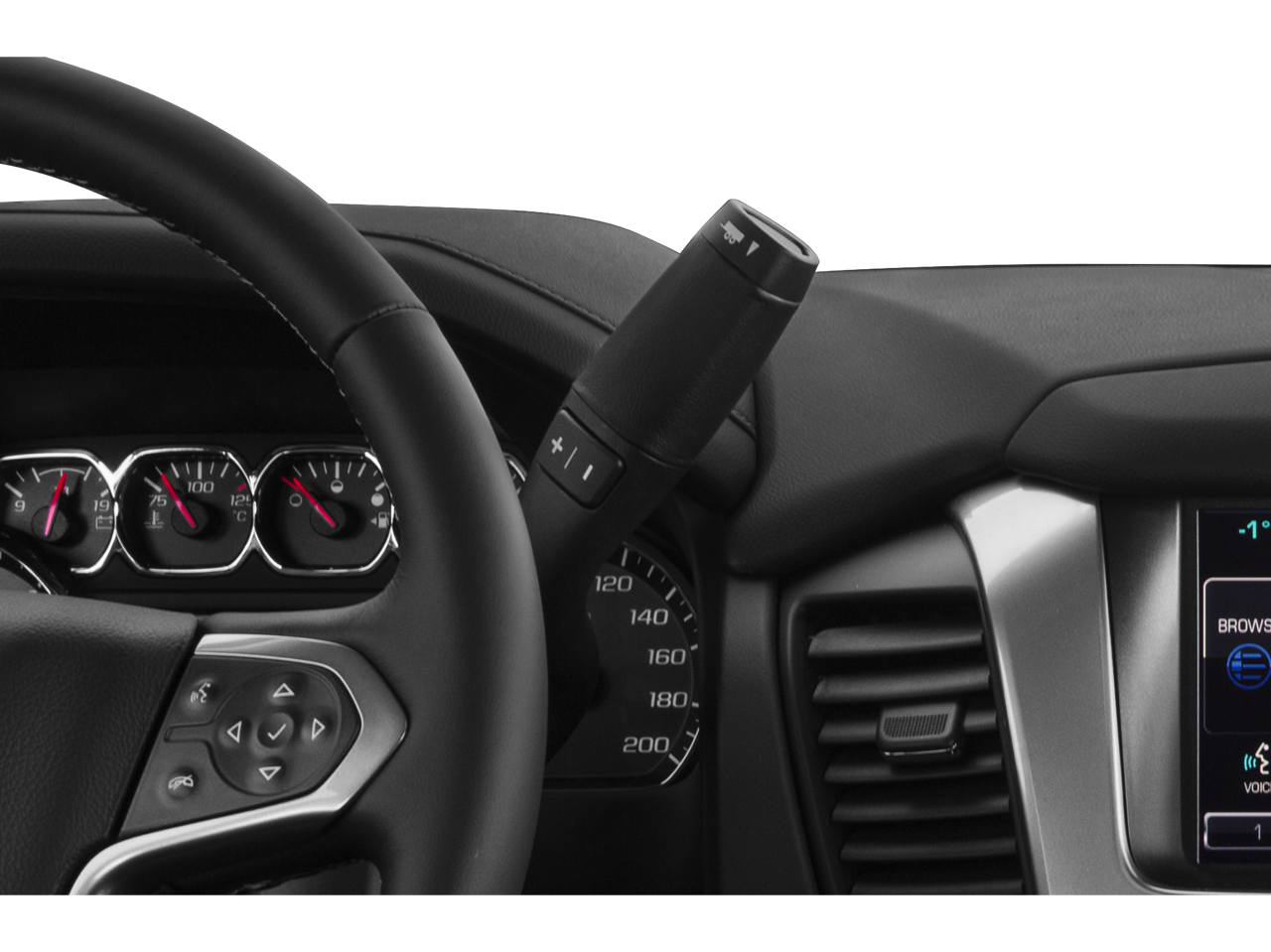

• Display, driver instrument information enhanced, one color
• Door locks, power programmable with lockout protection (With (9C1) Police Vehicle or (5W4) Special Service Vehicle, Auto Lockout is disabled on Driver door.)
• Remote Keyless Entry, extended-range (Not included when (PCK) Luxury Package is ordered.)

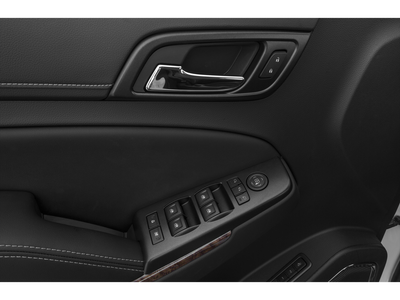

• Windows, power, all express down, front express up ((9C1) Police Vehicle and (5W4) Special Service Vehicle include lockout features)
• Cruise control, electronic with set and resume speed
• Climate control, tri-zone automatic with individual climate settings for driver, right-front passenger and rear passengers (With (9C1) Police Vehicle or (5W4) Special Service Vehicle, includes dual-zone automatic, front and rear air conditioning electronic controls)
• Defogger, rear-window electric
• Power outlet, 110-volt
• Power outlets, 5 auxiliary, 12-volt includes outlets in the instrument panel, console, back of console, 1 in 3rd row and 1 in cargo area (when bench seat is ordered, the outlet on the back of the console is lost) (Included and only available with (AZ3) 40/20/40 split-bench front seats. Not included with (9C1) Police Vehicle or (5W4) Special Service Vehicle)
• Mirror, inside rearview manual day/night
• Conversation mirror
• Assist handles, all seats (With (9C1) Police Vehicle or (5W4) Special Service Vehicle, front passenger assist handle is removed when (7X7) Spot lamps are ordered.)
• Lighting, interior with dome light, driver- and passenger-side door switch with delayed entry feature, cargo lights, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions. With (9C1) Police Vehicle or (5W4) Special Service Vehicle, interior lighting includes dome light, cargo lights, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions
• Cargo management system
• Cargo net (Deleted when (ATD) third row passenger seat delete is ordered.)

• Theft deterrent, electrical, unauthorized entry
• Brakes, 4-wheel antilock, 4-wheel disc, VAC power
• StabiliTrak, stability control system with brake assist, includes traction control
• Air bags, frontal and side-impact for driver and front passenger and head curtain side-impact for all rows in outboard seating positions Note: Head curtain side-impact included for third row seating positions, even though seat has been deleted. (Included and only available with (AZ3) 40/20/40 split-bench front seat. With (9C1) Police Vehicle or (5W4) Special Service Vehicle requires (AZ3) 40/20/40 split-bench front seat and (9U3) SEO front center seat (20% seat) delete. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Automatic Occupant Sensing System sensor indicator inflatable restraint, front passenger/child presence detector
• OnStar Directions and Connections plan for 6 months including Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance and Turn-by-Turn Navigation (Visit www.onstar.com for vehicle availability, details and system limitations. Services may vary by model and conditions.)
• Rear Park Assist with audible warning
• Rear Vision Camera
• Safety belts, 3-point, driver and right-front passenger
• LATCH system (Lower Anchors and Top tethers for Children), for child safety seats; lower anchors and top tethers located in all second row seating positions, top tethers located in third row seating positions
• Tire Pressure Monitor System air pressure sensors in each tire with pressure display in Driver Information Center (does not apply to spare tire)
• Warning tones headlamp on, key-in-ignition, driver and right-front passenger safety belt unfasten and turn signal on

• 2015 Interim Processing Code (Required on all interim models produced starting in October 2014.)

WHEEL, 17" X 8" (43.2 CM X 20.3 CM) FULL-SIZE, STEEL SPARE

• includes P265/60R17 V-rated tire

REAR AXLE, 3.08 RATIO

• (STD)

SUSPENSION, HEAVY-DUTY, POLICE-RATED

• front
• independent torsion bar
• and stabilizer bar and rear
• multi-link with coil springs

DOOR LOCKS AND HANDLES, INSIDE REAR DOORS INOPERATIVE

• (doors can only be opened from outside)

SEATING, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER

• includes 6-way power driver and 2-way front passenger seat adjuster
• driver and front passenger power lumbar control and power reclining
• center fold-down armrest with storage
• storage compartments in seat cushion (includes auxiliary power outlet)
• adjustable outboard head restraints and storage pockets (With vinyl
• does not include (AG1) Driver 6-way power seat adjuster or (AG2) Front passenger 6-way power adjuster.) (STD)

TRANSMISSION, 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode (STD)

SEATS, 2ND AND 3RD ROW VINYL WITH FRONT CLOTH SEATS

• Provides vinyl second and third row seats and cloth front seats

HEADLAMPS, DAYTIME RUNNING LAMPS AND AUTOMATIC HEADLAMP CONTROL DELETE

• deletes standard Daytime Running Lamps and automatic headlamp control features from the vehicle for police stealth surveillance

SWITCHES, REAR WINDOW INOPERATIVE

• (rear windows can only operate from driver's position)

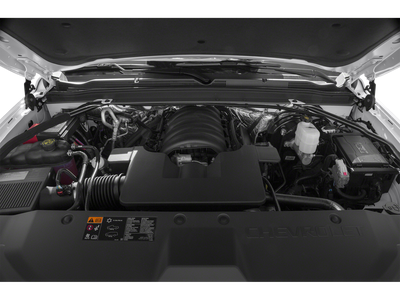

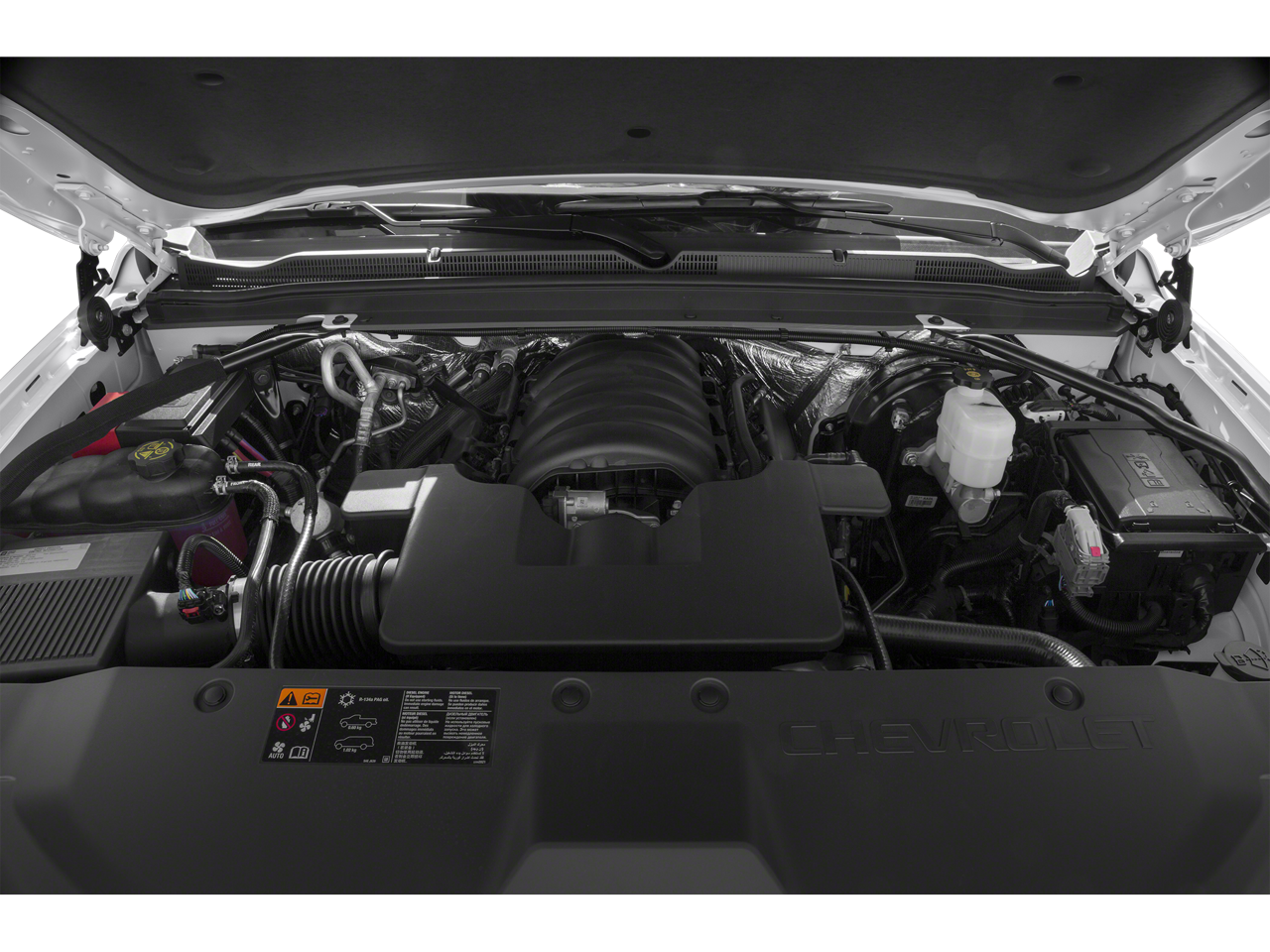

ENGINE, 5.3L ECOTEC3 V8 WITH ACTIVE FUEL MANAGEMENT, DIRECT INJECTION AND VARIABLE VALVE TIMING

• includes aluminum block construction (355 hp [265 kW] @ 5600 rpm
• 383 lb-ft of torque [518 N-m] @ 4100 rpm) (STD)

AUDIO SYSTEM, AM/FM STEREO WITH CD PLAYER AND AUXILIARY INPUT JACK

• includes 2 USB ports and 1 SD card reader (STD)

TRANSFER CASE, ACTIVE, 2-SPEED ELECTRONIC AUTOTRAC

• with rotary controls
• includes neutral position for dinghy towing

GLASS, DEEP-TINTED

• (all windows
• except light-tinted glass on windshield and driver- and front passenger-side glass)

SEATS, DRIVER AND PASSENGER FRONT INDIVIDUAL SEATS IN CLOTH TRIM

• Power driver and passenger bucket seats in base cloth trim. Derived from RPO (AZ3) 40-20-40 split bench seat with the 20% section removed. Does not include a floor console. All exposed floor area will remain untrimmed.

COMMERCIAL PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

• LICENSE PLATE FRONT MOUNTING PACKAGE
• WHEEL 17 X 8 (43.2 CM X 20.3 CM) FULL-SIZE STEEL SPARE includes P265/60R17 V-rated tire
• GVWR 7100 LBS. (3221 KG)
• BATTERY AUXILIARY 730 CCA
• KEY 6 ADDITIONAL KEYS
• REAR AXLE 3.08 RATIO (STD)
• TIRES P265/60R17 ALL-SEASON POLICE V-RATED
• SUSPENSION HEAVY-DUTY POLICE-RATED front independent torsion bar and stabilizer bar and rear multi-link with coil springs
• LIGHTING RED AND WHITE FRONT AUXILIARY DOME
• SEAT ADJUSTER FRONT PASSENGER 6-WAY POWER
• SUMMIT WHITE
• FRONT UNDERBODY SHIELD
• DOOR LOCKS AND HANDLES INSIDE REAR DOORS INOPERATIVE (doors can only be opened from outside)
• RADIO SUPPRESSION PACKAGE WITH GROUND STRAPS
• WIRING HORN AND SIREN CIRCUIT
• SEATING FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER includes 6-way power driver and 2-way front passenger seat adjuster driver and front passenger power lumbar control and power reclining center fold-down armrest with storage storage compartments in seat cushion (includes auxiliary power outlet) adjustable outboard head restraints and storage pockets (With vinyl does not include (AG1) Driver 6-way power seat adjuster or (AG2) Front passenger 6-way power adjuster.) (STD)
• WINDSHIELD STYLE ACOUSTIC LAMINATED GLASS
• 2015 INTERIM PROCESSING CODE
• SHIP THRU PRODUCED IN ARLINGTON ASSEMBLY and shipped to Kerr Industries and onto Arlington Assembly
• TRANSMISSION 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode (STD)
• SEATS 2ND AND 3RD ROW VINYL WITH FRONT CLOTH SEATS Provides vinyl second and third row seats and cloth front seats
• HEADLAMPS DAYTIME RUNNING LAMPS AND AUTOMATIC HEADLAMP CONTROL DELETE deletes standard Daytime Running Lamps and automatic headlamp control features from the vehicle for police stealth surveillance
• SEAT DELETE THIRD ROW PASSENGER
• SWITCHES REAR WINDOW INOPERATIVE (rear windows can only operate from driver's position)
• ENGINE 5.3L ECOTEC3 V8 WITH ACTIVE FUEL MANAGEMENT DIRECT INJECTION AND VARIABLE VALVE TIMING includes aluminum block construction (355 hp [265 kW] @ 5600 rpm 383 lb-ft of torque [518 N-m] @ 4100 rpm) (STD)
• WHEELS 17 X 8 (43.2 CM X 20.3 CM) STEEL POLICE BLACK
• PAINT SCHEME SOLID APPLICATION
• SEAT ADJUSTER DRIVER 10-WAY POWER
• AUDIO SYSTEM AM/FM STEREO WITH CD PLAYER AND AUXILIARY INPUT JACK includes 2 USB ports and 1 SD card reader (STD)
• TRANSFER CASE ACTIVE 2-SPEED ELECTRONIC AUTOTRAC with rotary controls includes neutral position for dinghy towing
• TIRE SPARE P265/60R17 ALL-SEASON POLICE V-RATED
• GLASS DEEP-TINTED (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• WINDSHIELD SOLAR ABSORBING SHADED UPPER
• SEATS DRIVER AND PASSENGER FRONT INDIVIDUAL SEATS IN CLOTH TRIM Power driver and passenger bucket seats in base cloth trim. Derived from RPO (AZ3) 40-20-40 split bench seat with the 20% section removed. Does not include a floor console. All exposed floor area will remain untrimmed.
• JET BLACK CLOTH SEAT TRIM
• IDENTIFIER FOR POLICE PATROL VEHICLE
• COMMERCIAL PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• WIRING GRILLE LAMPS AND SIREN SPEAKERS
• ALTERNATOR 170 AMPS HIGH OUTPUT
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hitch
• Tow Hooks
• Power Steering
• Steel Wheels
• Tires - Front All-Terrain
• Tires - Rear All-Terrain
• Conventional Spare Tire
• Conventional Spare Tire
• Running Boards/Side Steps
• Heated Mirrors
• Power Mirror(s)
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• Rain Sensing Wipers
• Intermittent Wipers
• AM/FM Stereo
• CD Player
• MP3 Capability
• Auxiliary Audio Input
• CD Player
• MP3 Capability
• Bluetooth® Connection
• Power Driver Seat
• Power Passenger Seat
• Driver Adjustable Lumbar
• Passenger Adjustable Lumbar
• WiFi Hotspot
• Cloth Seats
• Pass-Through Rear Seat
• Rear Bench Seat
• Pass-Through Rear Seat
• Adjustable Steering Wheel
• Cruise Control
• Power Door Locks
• Keyless Entry
• Power Door Locks
• Power Windows
• Cruise Control
• Climate Control
• Multi-Zone A/C
• A/C
• Rear A/C
• Rear Defrost
• Security System
• ABS
• 4-Wheel Disc Brakes
• Traction Control
• Stability Control
• Brake Assist
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor
• Telematics
• Navigation from Telematics
• Requires Subscription
• Rear Parking Aid
• Back-Up Camera
• Tire Pressure Monitor

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• Fuel Economy Est-Combined (MPG): 18
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 22
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Cold Cranking Amps @ 0° F (2nd): 730
• Maximum Alternator Capacity (amps): 170
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3500
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 3800
• Gross Axle Wt Rating - Rear (lbs): 4100
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 7100
• Gross Vehicle Weight Rating Cap (lbs): 7300
• Gross Combined Wt Rating (lbs): - TBD -
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 640
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Link
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3600
• Axle Capacity - Rear (lbs): 4100
• Axle Ratio (:1) - Front: 3.08
• Axle Ratio (:1) - Rear: 3.08
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: QAR
• Front Tire Order Code: RC3
• Rear Tire Order Code: QAR
• Rear Tire Order Code: RC3
• Spare Tire Order Code: ZAK
• Front Tire Size: P265/60R17
• Front Tire Size: P265/70R17
• Rear Tire Size: P265/60R17
• Rear Tire Size: P265/70R17
• Spare Tire Size: P265/60R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 17 x 8.0
• Front Wheel Size (in): 17 x 8.0
• Rear Wheel Size (in): 17 x 8.0
• Rear Wheel Size (in): 17 x 8.0
• Spare Wheel Size (in): 17 x 8
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 39.0
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 116.00
• Length, Overall w/rear bumper (in): 204.00
• Width, Max w/o mirrors (in): 80.50
• Height, Overall (in): 72.40
• Height, Overall (in): 74.40
• Overhang, Front (in): - TBD -
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 35.91
• Ground Clearance, Front (in): 8.5
• Ground Clearance, Front (in): 7.87
• Ground Clearance, Rear (in): 8.5
• Ground Clearance, Rear (in): 7.87
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Step Up Height - Front (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Length @ Floor to Seat 1 (in): 79.90
• Cargo Area Length @ Floor to Seat 2 (in): 43.20
• Cargo Area Length @ Floor to Seat 3 (in): 11.10
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 49.30
• Cargo Box (Area) Height (in): 40.90
• Cargo Box (Area) Height (in): 33.94
• Cargo Volume to Seat 1 (ft³): 111.8
• Cargo Volume to Seat 1 (ft³): 94.7
• Cargo Volume to Seat 2 (ft³): 51.6
• Cargo Volume to Seat 3 (ft³): 15.3
• Interior Dimensions
• Passenger Capacity: 6
• Passenger Capacity: 6
• Passenger Capacity: 9
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.30
• Front Shoulder Room (in): 64.80
• Front Hip Room (in): 60.80
• Second Head Room (in): 38.70
• Second Leg Room (in): 39.00
• Second Shoulder Room (in): 65.10
• Second Hip Room (in): 60.20
• Second Hip Room (in): 60.30
• Third Head Room (in): 38.10
• Third Leg Room (in): 24.80
• Third Shoulder Room (in): 62.60
• Third Hip Room (in): 49.30
• Summary

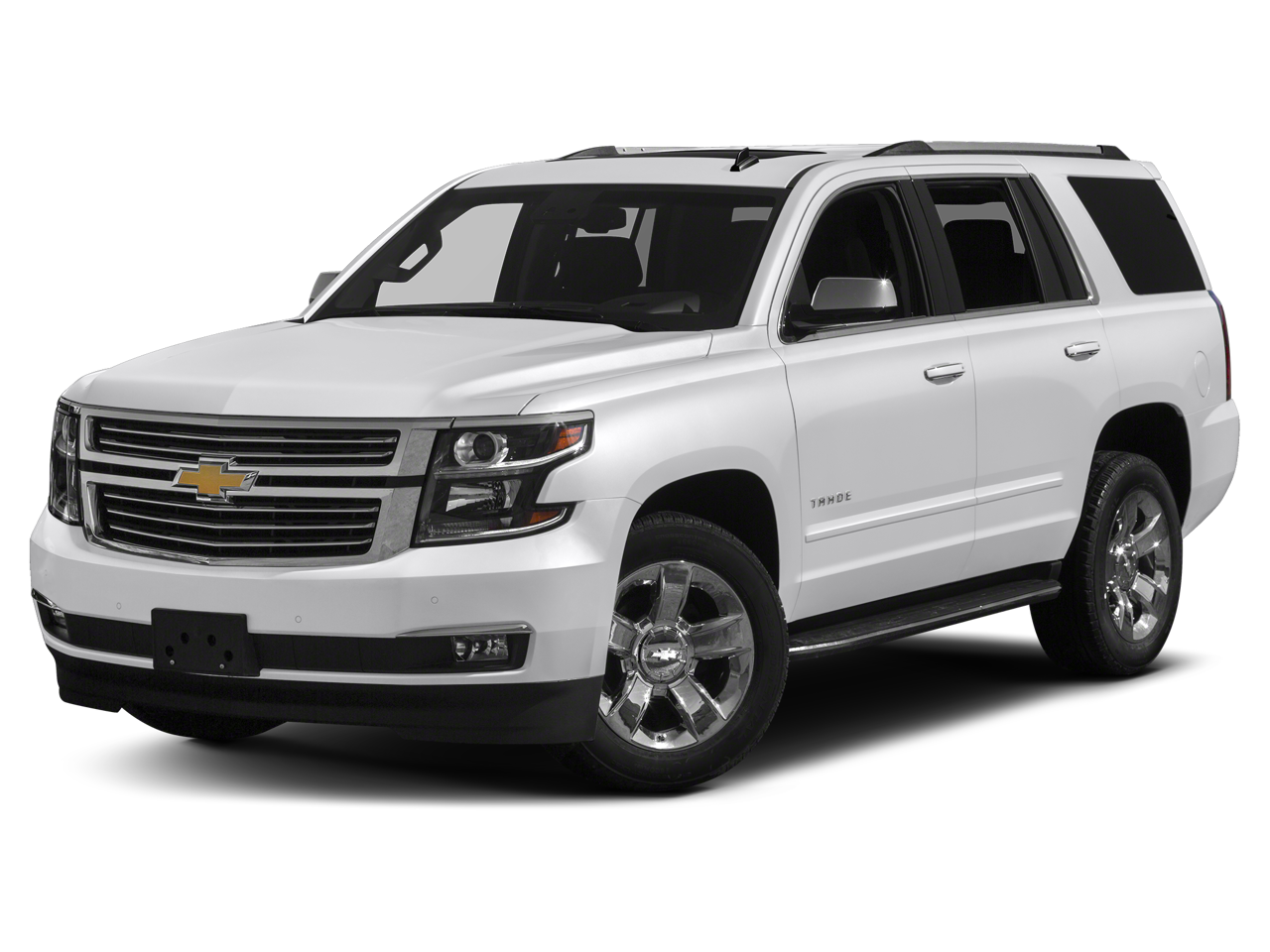

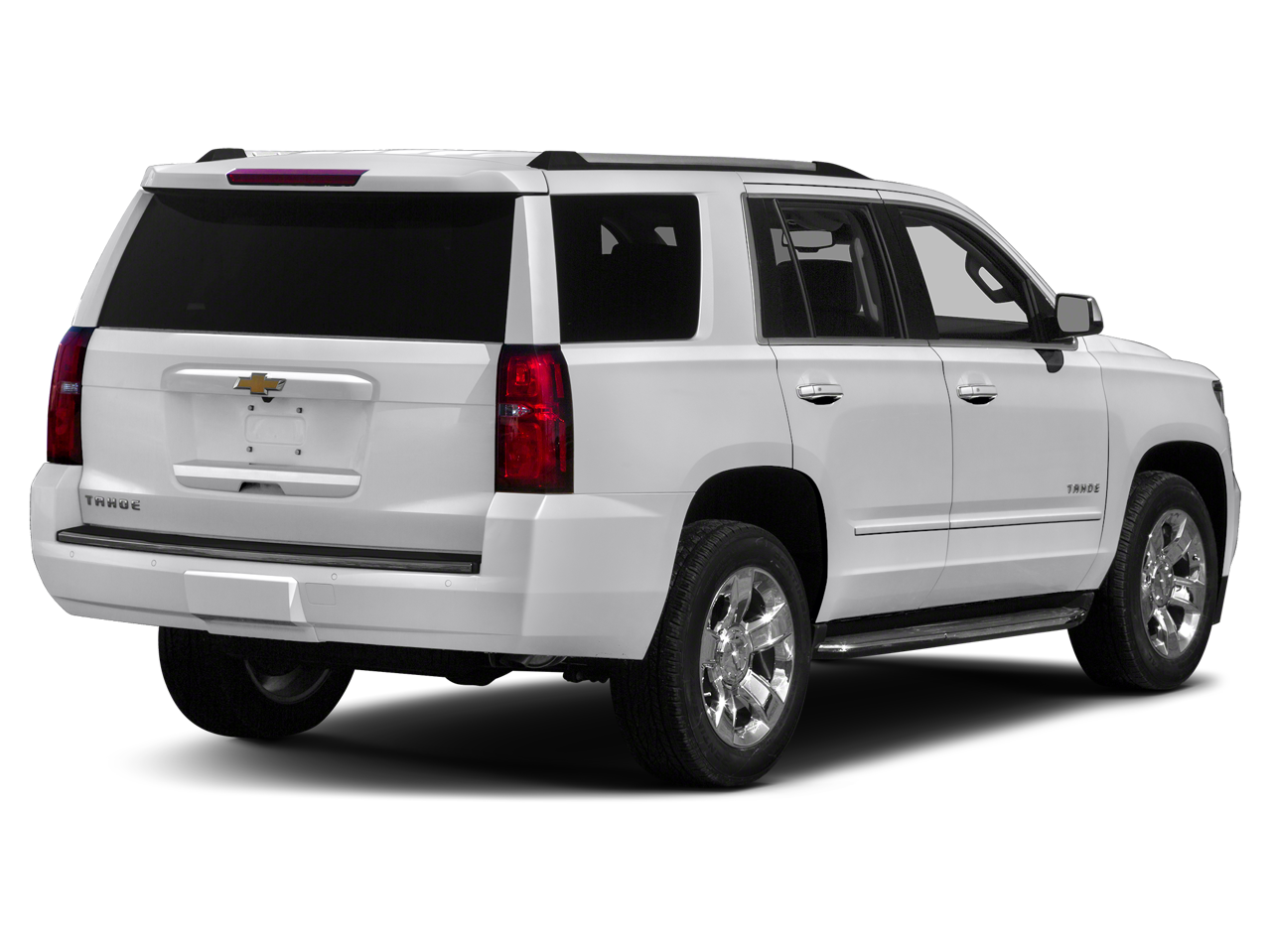

• Vehicle Name: Chevrolet Tahoe
• Body Style: Sport Utility Vehicle
• Body Code: E52
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.8
